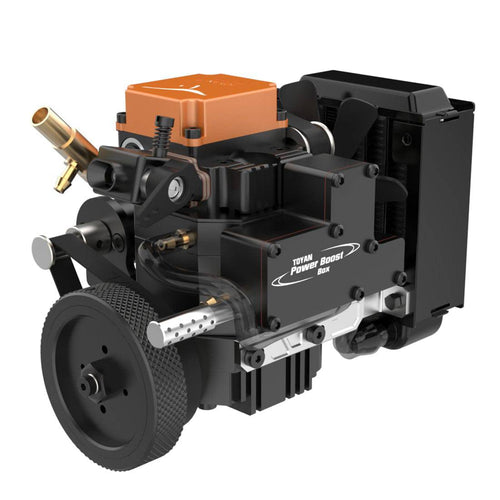

TOYAN FS-S100WA2 4 Stroke Methanol Engine Model With Water-cooled Pump Water-cooled Box
Features:
.The product comes with water cooling pump, cooling water channel, and water cooling box accessories. It has a large conversion potential and no need to reprocess the water cooling channel by itself; and it is stable in work, can work for a long time without rest, and is stable at high efficiency speed
.Small size and high horsepower, the additional accessories to start this product are: heat head + heat head cap + start ESC + simulator + 7.4vT battery + water cooling liquid; products can be purchased in our store, these products are not special products, are General products, other model engine accessories can also be used for this product, to see the completeness of their accessories to buy
.Use methanol fuel, the formula of this kind of fuel is generally: 20% castor oil, nitromethane 5-30%, the rest is methanol, this product does not have high requirements for methanol fuel, a concentration of 20-25% is acceptable
.Working Principle: Using methanol as fuel. When the piston reciprocates in the cylinder, the process of moving from one end of the cylinder to the other end is called a stroke. Four-stroke engines are divided into intake stroke, compression stroke, power stroke and exhaust stroke
.Operation Method: The ignition part is connected with the corresponding heat head cap, then connected with the voltage stabilizing module, and finally connected with the 7.4v T plug battery; the fuel part is the fuel tank connected with the oil pipe and connected to the engine, and the start part is the 11v T plug battery Connect the starter ESC to the simulator and starter motor. The starter motor is attached
.The product is suitable for installation on model cars or model boats, model airplanes, etc. of 1:10, 1:12, 1:14 ratio, and can also be used for classroom display and as teaching aids.
.Note: Please use it with caution during operation. Do not touch the motor fan with your hands to avoid scratching or touching the cylinder to prevent burns.
.For Crowd: 14+
Specifications:
.Color: As Shown
.Material: Metal + Plastic
.Cylinder Diameter: 17.0mm
.Piston Diameter: 16.6mm
.Displacement: 3.5cc
.Output Power: 0.5ps HP
.Speed: 2500-13500rpm
.Product Dimensions: 10.05 x 8.54 x 8.65cm
.Product Weight: 1000g
.Package Dimensions: 30 x 18 x 15cm
.Package Weight: 1500g
.Packing: Box
Package Content:
.1 x Engine Model
