TOYAN FS-S100AC 4 stroke Methanol Engine Assembly Starting Full Set for 1/8 1/10 1/12 RC Car Ship Model
Features:
.Engine Set:
Including Engine, Base, 3-in-1 ESC, Glow Plug, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button, Screw. After you get the kit, it can strat when added methanol fuel.
Note:
1. This engine has been upgraded to a T plug one, so the parcel doesn't include the battery box, battery, and charger . pls buy a rechargeable lithium battery if you need. thanks again for your understanding.
2. the tank is plastic now.
.Parameters:
Engine Length x Width x Height: 100.5 x 85.4 x 86.5mm.
Cylinder Diameter: 17.0mm.
Piston Diameter: 16.6mm.
Displacement: 3.5cc.
Output Power: 0.5ps Horsepower.
Revolving Speed: 2500-13500rpm.
Machine Weight: About 1.7kg.
Starting Battery: 7.4v 20C lithium battery. (not included)
Battery Capacity: 2400mAh. (not included)
Charging Time: 4h.
Tank Capacity: 90mL.
Running Time: 40min
.Fine Workmanship:
All-metal body. Made of aluminium alloy and alloy steel. Anodized coloring process. The surface is fine and smooth. The engine is small and powerful, with a one-click start, and the bracket base keeps the engine steady while idling, without toppling or vibrating.
.Working Principle:
Using methanol as fuel. As the piston moves back and forth in the cylinder, the process of moving from one end of the cylinder to the other is called a stroke. Four-stroke engines are divided into suction stroke, compression stroke, power stroke and exhaust stroke
.How to Operate:
The ignition part is the glow plug connected to the corresponding hot glow plug cap and then connected to the voltage regulator module, and finally connected to the 7.4v T-plug battery (not included).
Fuel Part: The fuel tank is connected to the oil tubing and then connected to the engine. The starting part is 11v T-plug battery (not included) connected to the starting ESC and then connected to the simulator and the starting motor. The starting motor is attached to itself
.Warm Tips:
The kit contains engine and complete accessories. Just need to prepare methanol fuel by yourselves.
(The fuel is typically formulated as 20% castor oil, 5-30% nitromethane, and the rest is methanol. This product does not have high requirements on methanol fuel, and 20-25% concentration can be used). Please pay attention to safety during operation.
The engine is suitable to be installed in 1:8, 1:10, 1:12 scale model car, model ship, model aircraft and other equipment.
This kit is also suitable for decoration, science and education, exhibition, etc.
.For Ages: 14+
where to buy the accessories: https://www.stirlingkit.com/collections/fs-100ac-engine-parts
Specifications:
.Color: As Shown
.Material: Aluminum Alloy + Alloy Steel
.Product Weight: 1800g
.Package Dimensions: 26 x 16 x 20cm
.Package Weight: 2300g
.Packing: Box

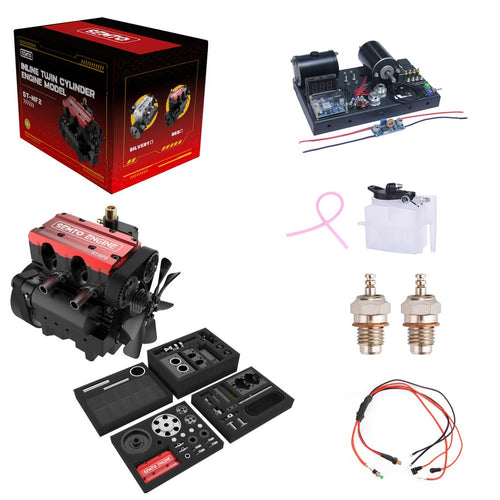

Package Content:
.1 x Engine Kit (Including Engine, Base, 3-in-1 ESC, Glow Plug, Oil Tube, Gas Pedal Arm, Throttle Lever, Start Button, Screw)
