Note: the new engine will be released on April 10th. welcome to book it in advance.
Features:

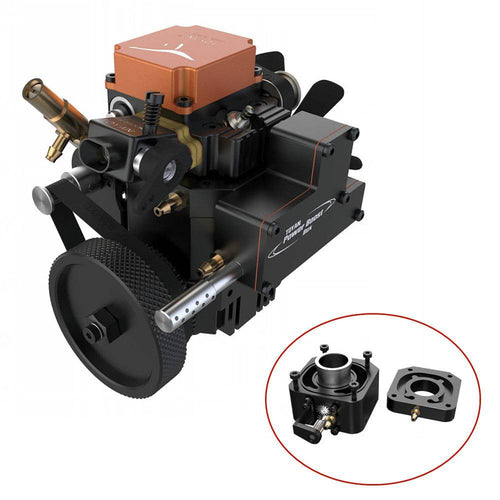

.FS-S100WA1's pump body power comes from the crankshaft. The mechanical water-cooled pump is driven by a synchronous belt to provide circulating power to the coolant in the water-cooled jacket to achieve the function of self-priming coolant to achieve self-cooling.
.The weight is 395.8g, the size is small and the horsepower is big. The extra accessories for starting this product are: spark plug + spark plug cap + voltage regulator module + start ESC + simulator + 7.4vT plug battery +11.1vT plug battery; products can be purchased in our shop These products are not special products, they are general-purpose products, and other models of engine parts can also be used for this product, to see the full range of accessories to buy
.Using methanol fuel, the formula of this kind of fuel is generally: 20% castor oil, nitromethane 5-30%, and the rest is methanol; this product is not required for methanol fuel, and the concentration of 20-25% can be used
.Working Principle: Using methanol as fuel. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke
.The four-stroke engine is divided into an intake stroke, a compression stroke, a power stroke and an exhaust stroke
.Operation Method: The ignition part is connected to the corresponding spark plug cap and then connected to the voltage regulator module, and finally connected to the 7.4v T plug-in battery; the fuel part is connected to the fuel tank after the fuel tank is connected to the engine, and the starting part is the 11vT plug battery. After starting the ESC, connect the simulator and the starter motor. The starter motor is included with it
.Applicable People: 14 years old or older
.The product is suitable for 1:10, 1:12, 1:14 scale model cars or model ships and other equipment, also can be used for classroom display, as teaching AIDS
.Notes: Please use it carefully during operation. Do not touch the motor fan with your hands to avoid scratching. Do not touch the cylinder department with your hands to prevent burns.
Specifications:
.Color: As Shown
.Material: Metal + Plastic
.Engine Dimensions: 100.5 x 85.4 x 86.5mm
.Cylinder Bore: 17.0mm
.Piston Diameter: 16.6mm
.Displacement: 3.5cc
.Output Power: 0.5ps Horsepower
.Speed: 2500-13500rpm
.Product Dimensions: 10.5 x 8.54 x 8.65cm
.Product Weight: 395.8g
.Package Dimensions: 12 x 10 x 10cm
.Package Weight: 600g
.Packing: Box
Package Content:
.1 x Model Engine
