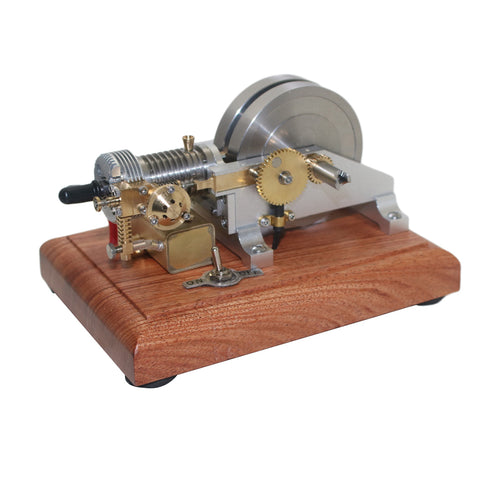

4 Cycle Odd Ball Miniature Hit and Miss Gas Engine Model Air-Cooled M96
Features:
.This is a horizontal single-cylinder 4-stroke engine model with a unique and exquisite design inspired by the mechanics engineer Philip Duclos. The structural design is stable and reliable, complemented by a wooden base for easy placement and operation.
.Crafted from brass, stainless steel, and aluminum alloy, the crankshaft support is equipped with a brass bushing with a lubrication hole, ensuring spindle lubrication and reducing friction. Additionally, a lubricating oil cup is added to the cylinder!
.We have developed a new-type igniter specifically for this mini engine that operates on a 1.5V battery! It runs on gasoline, with about 15 minutes of operation per fuel tank. The engine starts its clockwise operation (facing the starting axis), and you will hear the captivating sound as it starts.
.Perfect Craftsmanship Gift: This delicate model is easy to operate, fun to play with, and provides an opportunity to observe and understand the engine's working process and principles. It serves as an excellent desktop model for play and a superb personalized gift for mechanical craft model enthusiasts. Feel free to contact us with any questions.
Specifications:
.Material: Brass + Stainless Steel + Aluminum Alloy
.Name: 4-Cycle Oddball Hit and Miss Gas Engine Model
.Item: M96
.Displacement: 2.3CC
.Cylinder Diameter: 13mm
.Stroke: 17mm
.Flywheel Diameter: 58mm
.Cooling Method: Air-cooled
.Start Method: Electric Drill or Manual Pull Start
.Ignition Method: New-type Igniter
.Startup Power: 1.5V 1xAA Battery (Not Included)
.Fuel Type: Gasoline
.Lubricant Type: 2T Engine Oil
.Product Weight: 750g
.Product Dimensions: 13.5 x 8 x 6cm
.Package Dimensions: 20 x 10 x 15cm
.Package Weight: 900g
.Packing: Box
.Ages: 16+
