Features:
.Mini Engine:

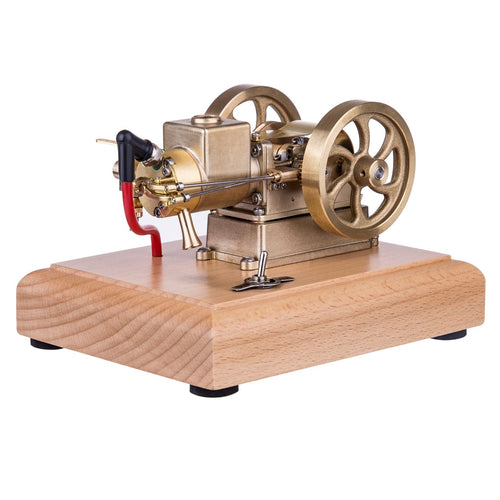

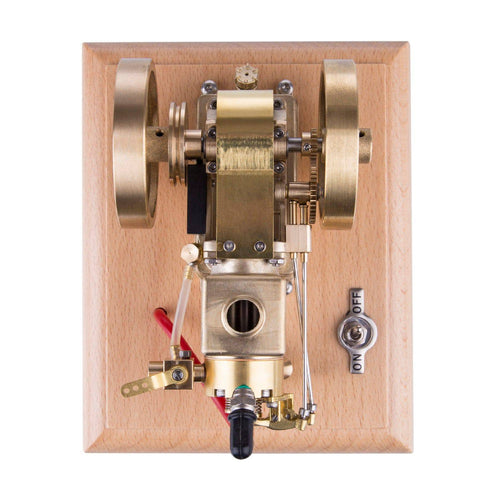

The M17B engine is based on the idea of the Hit and miss engine , which is similar to a toad in appearance.This is a miniature engine with a water-cooled structure and an adjustable speed carburetor. This kind of engines that suck the valve through the ejector is often mechanically limited, that is, the speed is constant. However, our designer makes it adjust the speed of the engine by adjusting the size of the intake valve through the carburetor. Open water jacket, and you can find there is no circulation pump, just evaporation.Therefore, it is not technically a H&M engine, but horizontal water-cooled internal combustion engine. Hit and miss engines are still used in the oil fields as pump motors. They run for weeks on a tank of gas and require very little maintenance. Some of the engines are decades old.
Made of brass and stainless steel. Wooden base for easy placement and operation. You will love this exquisite retro mini internal combustion engine.
.Exquisite:
The engine is unique and exquisite in shape, stable and reliable in structural design, high in quality, sophisticated in craftsmanship, and stable in performance. This is a very distinctive desktop model engine, simple and fun to operate. You will feel the unique charm brought by the engine's mechanical operation.
.Engine Startup Steps:
1. Check the engine wiring from the wooden base, then connect the fuel tank oil pipe, and install 3 AA batteries (4.5V).
2. Fill the fuel tank with 95# gasoline and 4% lubricating oil. After the filling is completed, rotate the flywheel clockwise several times on the right side of the engine (the surface of the power switch), which can make the mixed fuel completely enter the cylinder to ensure that there is no air in the fuel pipe.
3. Switch it on and quickly turn the flywheel clockwise to to start the engine on the right side(surface of the switch power)
learn more from Other YouTubers: Blog
.Excellent Model:
This is an amazing mechanical craft. You will feel the charm of the engine when it is working. For personal use or as a personalized high-end model gift to friends, family, and model fans
.For Crowd: 14+
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Displacement: 1.6cc
.Cylinder Diameter: 13mm
.Stroke: 12mm
.Power Supply Voltage of Ignition Device: 4.5V (3-cell AA Batteries Needed but Not Included)
.Start Mode: External Force (Electric Drill) or Manual
.Whole Size: 150 x 120 x 95mm
.Engine Size: 127 x 78 x 65mm
.Wood Base: 150 x 120 x 30mm
.Product Weight: 1100g
.Package Dimensions: 20 x 20 x 15cm
.Package Weight: 1500g
.Packing: Box
Package Content:
.1 x Engine
.1 x User Guide
