TOYAN FS-L400BGC 14CC DIY Assembly L4 Four-stroke Inline Four-cylinder Gasoline Engine Model (Kit Version)
Features:
.Fun DIY: Precision-manufactured parts for easy assembly following the included instructions. Gain a deep understanding of engine structure and mechanical principles.
.Highly Realistic: Sports-inspired gold design for a highly realistic engine appearance, operates with real gasoline.
.Long Stroke: Dual oil-seal on the crankshaft to prevent oil leakage and maintain stability during high-speed engine function.
.Crankshaft Support Bracket: Added support bracket enhances the crankshaft's high-speed performance, increasing functional stability.
.Integrated Crankshaft: Features a 90-degree phased crankshaft structure for smoother and more responsive function, reaching a maximum speed of 13500rpm.
.Valve/Camshaft Upgrade: Upgraded valve manufacturing process extends lifespan by 3.5 times. High-angle camshaft for improved throttle response.
.Dual Synchronous Pulleys: Dual synchronous pulley timing structure greatly reduces the risk of high-speed skipping teeth.
.Carburetor/Intake Upgrade: Carburetor redesigned with a matching fuel needle for easier engine startup. Newly designed intake manifold for user-friendly function.
.Oil Sump Upgrade: Enlarged oil sump size for easy future independent lubrication upgrades.

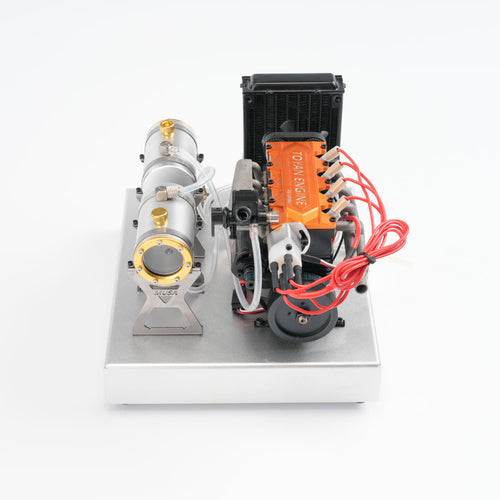

.One-Stop Integrated Assembly Solution: This complete starter base set combines startup platform, ignition system, water cooling setup, battery, and charger into one unified configuration. Assembly leads directly to operation without extra sourcing.
.Factory-Matched Components for Stable Operation: Each module is developed specifically for the FS-L400BGC engine model. Precision interfaces ensure smooth alignment, reliable ignition response, and efficient cooling flow.
.Dual Aluminum Water Cooling System: The included water cooling structure effectively transfers heat away from the cylinder body, reducing thermal load and supporting extended runtime sessions.
.Integrated Startup Control Design: The starter base features a built-in power switch and start button. Once connected, the engine activates through a clean, organized control layout without complex external devices.
.Mechanical Aesthetics with Display Appeal: The modular base structure keeps all components neatly arranged, forming a visually striking mechanical platform suitable for operation and desktop display.
.Creative Gift: Perfect as a desktop model or for RC model modifications or as a premium model holiday gift for others.
.Notes: The engine is a parts kit version and does not include a base, spark plug, ignition accessories, water cooling parts, etc. Please follow the instructions to avoid any mishandling that could damage the engine. Feel free to contact us if you have any questions.
Specifications:
.Material: Metal
.Brand: TOYAN
.Model: FS-L400BGC
.Configuration: Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHC (Overhead Camshaft)
.Displacement: 14cc (4 x 3.5cc)
.Cylinders: Inline Four-Cylinder
.Stroke: Four-Stroke
.Bore Diameter: 16.6mm
.Stroke Length: 17.0mm
.RPM Range: 3200-13500rpm
.Power Output: 3.05hp
.Cooling System: Water-Cooled + Air-Cooled
.Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
.Start Mechanism: Electric Start
.Ignition Method: CDI Ignition
.Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug
.Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery
.Fuel Type: 92# and Above Gasoline
.Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
.Product Weight: 1250g
.Product Dimensions: 16.35 x 5.05 x 10cm
.Package Dimensions: 21.5 x 21.5 x 17cm
.Package Weight: 1950g
.Packing: Box
.Ages: 16+
Packing List:
.Engine Parts Set *1
.Tools Kit *1
.Instructions *1
.Silver Base *1
.Spark Plugs *4
.CDI Igniter *1
.Starting Harness *1
.Fuel Tank and Bracket Set *1
.Fuel Line *1
.Water Tank and Bracket Set *1
.Water Lines *2
.Water Cooling Radiator and Bracket Set *1
.M3*10 Bolts *18
.M3 Nuts *18
.Socket Wrench *1
.Fuel Dispenser *1
.Battery *1
.Charger *1
