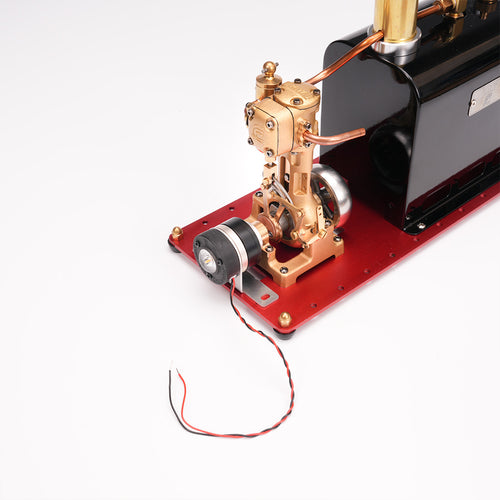

Modified DC 2.5 V-8 V Micro Brushless Generator LED Module for RW-BL1K Steam Engine Models
Features:
.Precision Interface Compatibility: Designed specifically for RW series steam engine models. The 4 mm input shaft and controlled insertion depth up to 15 mm ensure accurate alignment with mounting points, allowing secure installation without structural modification.
.Stable Brushless Power Output: Built with brushless motor technology to reduce mechanical wear and maintain consistent performance. Provides up to 2 W output with a DC voltage range of 2.5 V–8 V, suitable for low-power components such as 0.2 W LED lighting.
.Defined Speed Range for Safe Operation: Recommended operating speed is clearly specified at 1000–3000 RPM, with an upper limit below 3500 RPM to help prevent overspeed conditions and support long-term operational reliability.
.Lightweight Structure with Quick Wiring: Weighing approximately 40 g, the unit minimizes added load on the model. The MX1.25 output connector enables fast electrical connection, supporting efficient installation and adjustment.
.Complete Functional Upgrade Component: Delivered ready for installation, the generator integrates a compact brushless structure with precise manufacturing, supporting ongoing power supply needs for mechanical modification projects.
Specifications:
.Product Name: Miniature Brushless Generator
.Input Shaft Diameter: 4mm (Note: Maximum output shaft depth is 15mm; excessive depth will damage the generator)
.Generator Power: 2W
.LED Power: 0.2W
.Output Voltage: DC 2.5V (1000RPM) - 8V (3000RPM)
.Generator Operating Speed: 1000-3000 RPM
.Maximum Speed: Must be below 3500 RPM; otherwise, over-speeding will damage the generator
.Output Connector: MX1.25
.Product Weight: 40g
.Package Weight: 100g
.Product Dimensions: 6 x 3.2 x 3.5cm
.Package Dimensions: 10 x 8 x 6cm
.Packing: Bag
.Age: 16+
