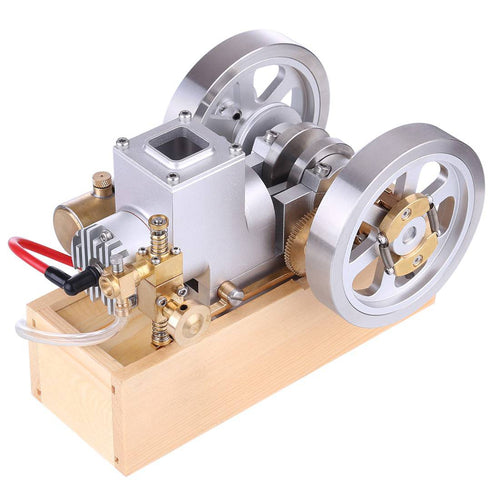

Horizontal Water-cooled Gasoline Combustion Engine Hit Miss Complete Engine with Hand Starter
Features:
.It's a horizontal gasoline model engine, with water cooling ancient structure. The engine cylinder head design is unique, the valve mechanism is installed on the left side. The processing difficulty of side valve structure also increases, through the compact side gear drive mechanism to control the exhaust shutdown
.A 90 degree helical gear is used.
.The flywheel on the left is equipped with a speed limiter connected to a large bevel in the middle
.The unique shape of the engine with wooden base, easy to put and operate
.Value: A high-end metal craft internal combustion engine model, and the structure has been upgraded and processed, easy to operate. A great personality gift for model fans or your friends
.For Ages: 14+
Engine startup steps:
1. Open the bottom plate to check the wiring of the engine, connect the fuel tank pipe, and install the three AA batteries to close the bottom plate.
2. Fill the fuel tank with gasoline (95#). When the flling is completed, make sure there is no air in the oil pipe.
3, On the right side of the engine (installation of the flying hammer position), slowly turn counterclockwise by hand to buy more than one
turn, its role can make the mixed gasoline fully enter the cylinder.
4. Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine (installation of the flying hammer position).
Precautions:
1. If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it is very likely that the carburetor needle should be adjusted.
2. Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio of gasoline and air
More engine review, please click here.
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Item: Horizontal Hit and Miss Complete Engine
.No.: M94
.Wooden Base: 180 x 66 x 50mm
.Displacement: 6CC
.Cylinder Diameter: 22mm
.Stroke: 20mm
.Revolutions: Approximately 1200rpm
.Power Supply: 3 x AA batteries (Not Included)
.Fuel: 95# Gasoline
.Product Size: 18 x 12.5 x 12.5cm
.Product Weight: 1610g
.Package Dimensions: 25 x 25 x 25cm
.Package Weight: 2200g
.Packing: Carton Box
Package Content:
.1 x Model Engine
.1 x Hand Starter
.1 x Manual
