M12B 2.6cc Mini Water Cooled 4 Stroke Gas Engine ICE Engine Model Upgrade
Shipping Notice:
M12b is in stock now. Only 35pcs left. the order will be sent within 1 day after the order is placed.
Features:

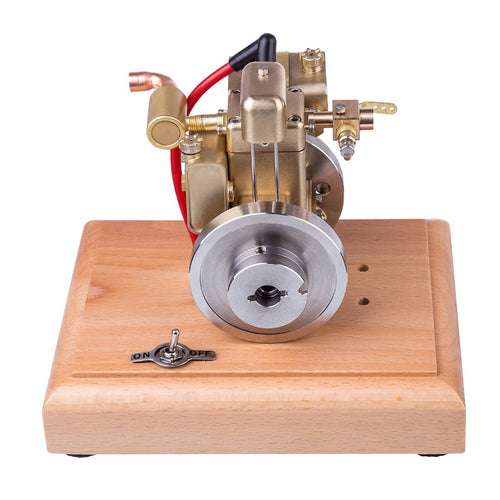

.This mini gasoline engine is carefully crafted from brass and stainless steel. It has a unique shape and a water-cooled cooling structure. The structure is stable and reliable. It is equipped with a wooden base for easy placement and operation. You will love this exquisite mini single cylinder four-stroke gasoline engine model.
.Engine Starting Steps:
(1) Check the engine wiring from the wooden base, connect the fuel tank oil pipe, and install the AA battery (4.5V);
(2) Fill the fuel tank with 95# gasoline, after the filling is completed, put the flywheel on the engine The right side (the surface of the power switch) rotates clockwise multiple times without generating air;
(3) Turn on the power switch, and then quickly turn the flywheel clockwise on the right side of the engine (the surface of the power switch) to start the engine.
.Note:
(1) If the ignition device is normal and the cylinder compression is normal, and the machine cannot start normally, it is likely to need to adjust the carburetor oil needle;
(2) After tightening the main oil needle on the carburetor, loosen 1/4 Circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio;
(3) When the machine stops running, turn off the power switch.
.Value:
This exquisite engine model is easy to operate, and can be used as a desktop model to play with, as a boutique model collection, and is also an excellent personalized gift for model lovers.
.For Ages: 14+
Specifications:
.Color: As Shown
.Material: Brass + Stainless Steel + Wood
.Engine Size: 150 x 120 x 127mm
.Wooden Base Size: 150 x 120 x 30mm
.Displacement: 2.6cc
.Bore: 13mm
.Stroke: 12mm
.Use adjustable speed carburetor, matching ignition device
.Start Mode: External force (electric drill) or manual start
Fuel: 95# gasoline
.Product Dimensions: 15 x 12 x 12.7cm
.Product Weight: 1400g
.Package Dimensions: 20 x 20 x 15cm
.Package Weight: 1750g
.Packing: Box
Package Content:
.1 x Engine Model
.1 x Hand Puller
.1 x User Manual
