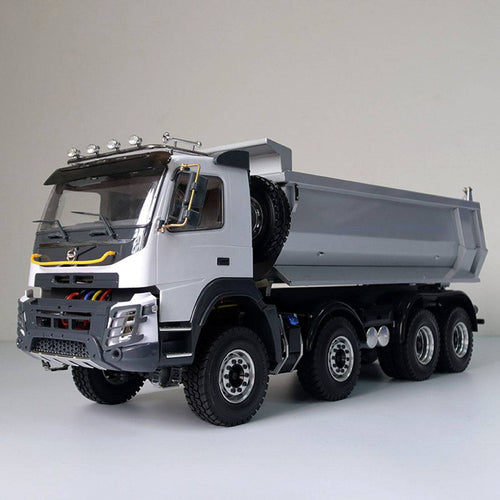

JDMODEL JDM-65RC Heavy Hydraulic Dump Truck Construction 1/14 8x8 Electric Model
Features:
.Hydraulic fluid: 32# or 46# hydraulic fluid
.Gearbox: Planetary gearbox features compact structure. Simulation ziplock type shift has the characteristics of large torque. You can change gear on the move.
.Reduction ratio: First gear 1:64 / second gear 1:6
.High magnetic torque brush 35T540 motor, carbon brush can be replaced.
.320A 7.2-16.8V high voltage ESC
.The vehicle can go through a 45 degree steep slope with a load of 15 kg
.Front Suspension: Pull rod swing arm type balance suspension increases the swing amplitude of front axle, and improve the performance of truck passing
.Rear Suspension: Lightweight parabolic steel plate with few pieces. Better load than large elasticity, so that each tire is evenly grounded
.Drive axle: Zinc-alloy simulated single-stage deceleration axle shape design. Can control differential lock, to improve the tipper's passability. The hexagon connector adopts a bushing structure for better installation precision.
.Steering: Double connecting rod steering system. The steering gear is installed between the main beams. 17KG steering gear drive, large steering torque. Under the coordination of each connecting rod, different steering angles can be formed to reduce steering resistance
.Wheel hub: 10 holes heat dissipating vacuum tire ring structure.
.Tyre: 315/80/R22.5, 86.5mm in diameter, 22MM in width. There are deep groove patterns to improve grip
.Transmission Shaft: Equipped with an initial V-shaped gradually open Angle transmission shaft. Spline structure & large torque
.Oil Cylinder: 5-level multi-level oil cylinder is 37mm in diameter, 115mm in stroke, 5MP in pressure resistance. If connected with oil pump set, the theoretical thrust is 400KG
.Oil Pump: 2814 brushless motor drive, rated pressure 3.5-5mpa, flow rate 0.42L/MIN. Small volume and high efficiency. Driven by 40A brushless electric adjustment
.The Car Buckle: The button-down structure for replacing battery conveniently. When the lock is pulled, the car shell will spring up automatically.
.Oil Tank: The exterior is anodized silver, and the interior is loaded with hydraulic oil, which can make the car more gorgeous
.Taillight: The taillight with explosion-proof net designed in the static model can be installed freely with 3-5mmLED lights
.Carriage: It utilizes simulation car bucket for faster unloading and reducing material adhesion.
.Sound Group: 3 sound effects can be replaced
.Light Group: Additional purchase is required
.Note: Voltage of remote control is 9.6V, and the voltage of vehicle is 11.1v (3S lithium battery or 12v battery)
.Operation Steps: Firstly turn on the remote control. Next, connect the power supply of the vehicle before the 4 signal sound to be confirmed (within 5s).
.You can paint and customize it yourself
.Suitable for high-end professional RC model enthusiasts or construction machinery model enthusiasts. Give you unprecedented experience to feel the power of the RC construction machinery model.
.If you have any questions, please consult customer service
.For Ages: 14+
Specifications:
.Color: As Shown
.Material: Metal + Plastic
.Length: 680mm
.Width: 210mm
.Height: 160mm
.Weight: 10.3KG (Plug Remteo Control 10.8KG)
.Theoretical Load: 15KG
.Total Deadweight: 24.5KG
.Remote Control: FS-I6S (2.4G / 6CH)
.Remote Control Battery: 9.6v (Not Included)
.Vehicle Battery: 11.1V, 3S Lithium Batteries and Above (Not Included)
.Motor: 35T 540 Brushed Motor
.ESC: 320A 7.2-16.8V High Voltage ESC
.Servo: 17KG Servo
.Product Size: 68 x 21 x 16cm
.Product Weight: 10300g
.Package Dimensions: 89 x 32 x 35cm
.Package Weight: 13800g
.Packing: Carton Box
Package Content:
.1 x Car
.1 x Controller
