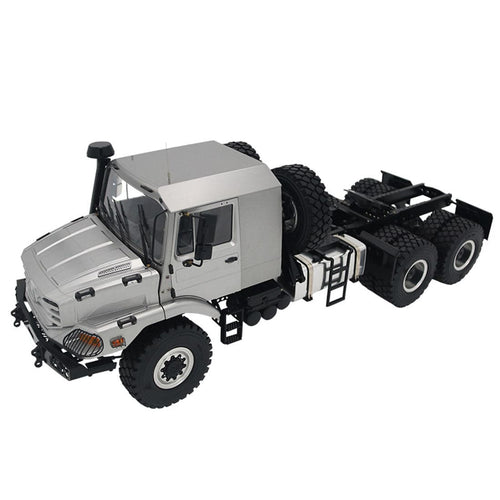

JDMODEL JDM-157 1/14 Electric RC Off-road Truck Crawler Heavy Trailer Construction Vehicle Model 6x6
Features:
.Car Shell: Plastic Simulated Hard Shell with Interior Trim. The door can opent The hood can open. Simulated Car Lights
.Chassis: Front suspension with anti-roll bar. All metal outside the battery case, such as simulation pedal, fuel tank, exhaust pipe, spare tire frame, metal girder, metal wheel hub
.Remote controller is powered by 6 AA batteries (not included). 11.1V 3S lithium battery or 12v battery for vehicle. The battery connector is XT60
.Operation Steps: Firstly turn on the remote control (the switch or knob of the remote control should be in the default position). Next, connect the power supply of the vehicle before the signal and sound to be confirmed (within about 5S). If you operate ahead of time, the ESC will likely enter the setting mode, resulting in the ESC can not work correctly.
.Vehicle Battery Installation: Firstly measure the voltage (the battery and power indicator need to be purchased separately). The voltage should not be lower than 11.1V.
.Suitable for high-end professional RC model enthusiasts or construction machinery model enthusiasts. Give you unprecedented experience to feel the power of the RC construction machinery model.
.If you have any questions, please consult customer service
.For Ages: 14+
Specifications:
.Color: As Shown
.Material: Metal + Plastic
.Scale: 1:14
.Length: 674mm
.Width: 227mm
.Height: 242mm (Including Antenna 273mm)
.Wheelbase: Total Wheelbase 478mm
.Front Axle to Middle Axle: 363mm
.Middle Axle to Rear Axle: 115mm
.Front Shock Absorber Stroke: 20mm
.Gearbox: All-metal Simulated Planetary Second Gear Gearbox
.Axle: Metal Axle with Differential Lock Function
.Remote Control: DUMBORC-X6 (2.4G / 6CH)
.Remote Control Battery: 6 x AA (Not Included)
.Motor: Snow Panther Hobby 35T 540 Motor
.ESC: Hobby Wing 60A 1060 ESC
.Servo: K-power 0900 9KG Servo
.Vehicle Battery Specification: 3S 5200mAh 11.1V 25C and Above (Not Included)
.Battery Case Size: 142 x 45 x 40mm (The battery size should be within this range)
.Weight: 6.8kg (The weight is 7.1kg with remote control)
.Theory of Load: 10KG
.Total Deadweight: 17KG
.Product Size: 67.4 x 22.7 x 24.2cm
.Product Weight: 6800g
.Package Dimensions: 86 x 37 x 34cm
.Package Weight: 11000g
.Packing: Carton Box
Package Content:
.1 x Vehicle
.1 x Remote Controller
