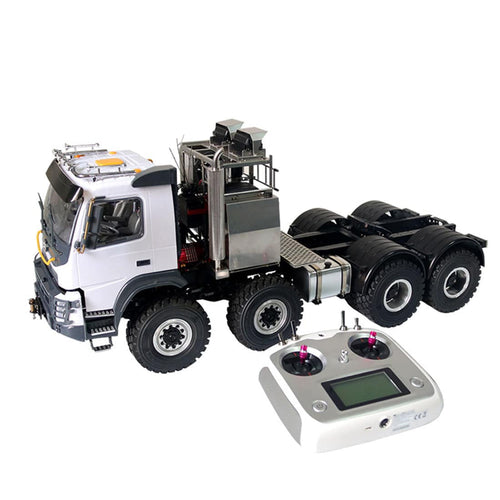

JDMODEL JDM-136 1/14 8x8 Electric RC Construction Off-road Crawler Vehicle Heavy Trailer Truck Model
Features:
.Brushed motor for heavy trucks
.All-metal 3-speed gearbox (planetary gear)
.Super scale spring suspension setting
.Scale fuel tank (aluminum ingots)
.Lockable rear axle remotely(locking differential)
.Scale wheel (aluminium ingot)
.All metal front and rear axle housing
.Steel scale drive shaft
.Telescopic steel ladder
.Molded functional fuel tank
.Scale light barrel
.Realistic front cab lock
.Hard plastic European style front cab
.Shaft gear ratio: 9:1
.Gearbox: First gear 6.7:1. Second gear 5:1. Third gear 3.7:1
.Remote controller is powered by 4 AA batteries (not included). 11.1V 3S lithium battery or 12v battery for vehicle. The battery connector is XT60
.Operation Steps: Firstly turn on the remote control (The switch of the remote control should be in the upward position). Next, connect the power supply of the vehicle before the signal sound to be confirmed (within about 5S). If you operate ahead of time, the ESC will likely enter the setting mode, resulting in the ESC can not work correctly.
.Before turning on the remote control, please check that all switch positions are upward and the control lever is back to the middle position. Turn on the switch after confirmation
.Remote Control Battery Installation: 4 normal AA batteries are needed. Pay attention to the positive and negative electrodes
.Vehicle Battery Installation: Firstly measure the voltage (the battery and power indicator need to be purchased separately. 3S lithium battery within size in 1500mm long, 45mm wide, and 40mm tall. ). The voltage should not be lower than 11.1V.
.Suitable for high-end professional RC model enthusiasts or construction machinery model enthusiasts. Give you unprecedented experience to feel the power of the RC construction machinery model.
.If you have any questions, please consult customer service
.For Ages: 14+
Specifications:
.Color: As Shown
.Material: Metal + Plastic
.Scale: 1:14
.Length: 669mm
.Width: 230mm
.Height: 278mm
.Weight: 8.1kg (Plus Controller: 8.56kg)
.Theoretical Traction Mass: 80KG
.Controller: FS-I6S (Equipped with 6CH Receiver)
.Controller Battery: 4 x AA (Not Included)
.Car Battery: 11.1V 3S Lithium Battery and above (Not Included)
.Product Size: 66.9 x 23 x 27.8cm
.Product Weight: 8560g
.Package Dimensions: 80 x 37 x 33cm
.Package Weight: 12600g
.Packing: Carton Box
Package Content:
.1 x Car
.1 x Controller
