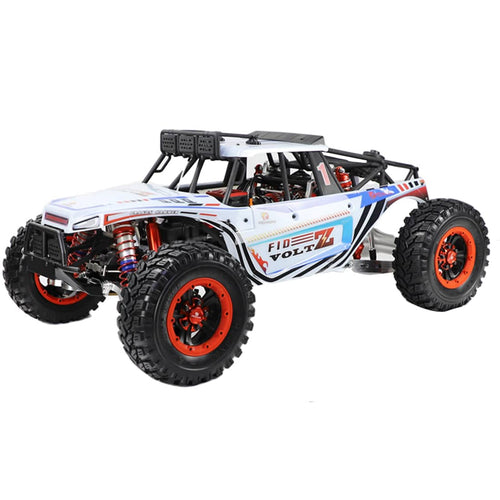

FID RACING VOLTZ 1/5 High-speed RC Electric 4WD Off-road Simulation Desert Crawler Vehicle 100KM/H (No Remote Controller Battery Charger)
Features:
.It is equipped with a 74/120 size 4-level brushless motor and a 300A brushless ESC. It currently supports up to 8S batteries. The ESC shell is an all-aluminum alloy shell, and the brushless motor is all-aluminum shell (customized version).
.The whole vehicle is equipped with four all-metal damping systems and four all-metal hydraulic dampers, which promotes the vehicle's walking posture at high speeds to be more stable and smooth.
.The frame structure uses a large number of aluminum alloy materials to stabilize the entire body, and the parts are all designed to be lightweight.
.The front and rear main transmission adopts high-carbon steel spiral bevel gear transmission with a gear module of 1.5m. The whole vehicle adopts three all-metal differentials. All gears are heat-treated and tempered. In order to ensure accuracy, they are all CNC-made and finished. Transmission cups The spring steel material is blackened, and the internal differential bevel teeth of the differential are made of high-strength powder technology.
.FID VOLTZ vehicle drive shafts are all precision-machined by multi-axis machines. The front wheels are in the form of CVD, the rear wheels are driven by a telescopic universal joint, and the rear wheels are driven by a spline, the maximum size is 25mm, and the drive pins are all used. Up 5mmPIN.
.FID VOLTZ uses two large 65KG all-metal steering gear steering combinations to promote the strength to 130KG and support voltage 7.4V, and the steering system is very flexible.
.Any VOLTZ car will have a unique chassis number. The number in the picture above is FID VOLTZ05E0156. The numbering sequence is: model name FIDVOLTZ, frame ratio 05, E for electric version, 0156 for frame number.
.The front wheel suspension group uses an all-metal swing arm and is equipped with 2 shock absorbers and 2 hydraulic dampers.
.300A non-inductive brushless red customized version of ESC, maximum support 6S to 8S battery series.
.It is equipped with a 74/120 size rear motor, which makes the front and rear ratio of the vehicle more balanced. The motor heat dissipation is a dual fan heat dissipation system, which is directly powered by an ESC.
.The rear wheel four-link suspension system is equipped with 2 shock absorbers and 2 hydraulic dampers, all-metal shock absorbers and all-metal knife arms.
.The rear-wheel drive adopts an integral all-metal rear axle, a built-in differential, a half-shaft drive, a five-point positioning tire lock device and a central drive shaft device.
.The design structure of the whole vehicle is reasonable, and the body is abnormally full. Exquisite workmanship, front and rear suspension atmosphere, equipped with 230*85mm luxury tires.
.The 5 mm shaped U-shaped chassis increases the overall strength of the body. The all-metal knife arm, the all-metal integral rear axle, and the all-metal swing arm light up the chassis.
.Three Colors Optional of Car Shell: transparent car shell, white car shell and gun gray car shell for users to choose from, with stickers. Players need to purchase a remote control, battery, and charger separately.
.For Ages: 14+
Specifications:
.Color: White
.Material: Metal + Plastic
.Scale: 1:5
.Wheelbase: 620mm
.Max Ground Clearance of Chassis: 120mm
.Tire Size: 230 x 85mm
.Battery Compartment Size: 190(L)x75(W)mm (height unrestricted)
.Shock Absorption: All-metal twisted teeth are equipped with 4 all-metal hydraulic dampers at the same time
.Spare Tire Size: 190 x 75mm
.Motor: 680KV sensorless brushless motor is recommended (not included)
.Dimensions: 74/120mm
.ESC: 300A sensorless brushless ESC (maximum support 6-8S) is recommended (not included)
.Steering Servo: all-metal double steering gear 130KG is recommended (not included)
.Chassis: All aluminum Alloy 5mm U-shaped chassis
.Front Suspension: All-metal independent suspension system
.Rear Suspension: All-metal four-link integral bridge suspension
.Drive Mode: Four-wheel drive
.Differential: The whole car is equipped with three all-metal differentials.
.Product Dimensions: 87.8 x 54.5 x 42.3cm
.Product Weight: 20000g
.Package Dimensions: 90 x 57 x 35cm
.Package Weight: 24000g
.Packing: Carton Box
Package Content:
.1 x RC Car
.1 Set x Sticker
