Features:

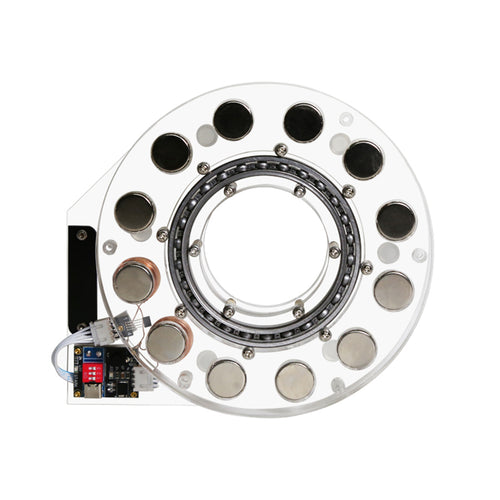

Special Design: This electric motor model features an outer rotor motor design with a large bearing diameter of up to 95mm. It uses a 6518 bearing model with a 75mm inner diameter. The outer rotor has 10 strong magnets, each measuring 20 x 10mm, while the stator coil consists of 2 coreless coil units, each measuring 22 x 12mm.
Adjustable Voltage: Powered by Type-C, this motor offers adjustable voltage settings ranging from 5V to 20V without needing a charger change. For optimal performance, we recommend using up to 12V to prevent excessive heating.
High-Tech Appeal: Equipped with a new Hall drive board and enhanced power design, this motor includes switch indicator lights. It is compact, flexible, finely crafted, and lightweight, making it easy to carry.
Operational Instructions: Simply connect the power supply, press the start button, and if the motor does not rotate immediately, manually rotate the motor by hand to start the motion.
Specifications:
- Material: Electronic Components + Acrylic + Copper + Plastic
- Speed: Approximately 800 RPM at 5V, and 2000 RPM at 12V
- Power: 20W
- Product Weight: 920g
- Package Weight: 1100g
- Product Dimensions: 18 x 3.6 x 6.5cm
- Package Dimensions: 20 x 10 x 20cm
- Packing: Box
- Ages: 16+
