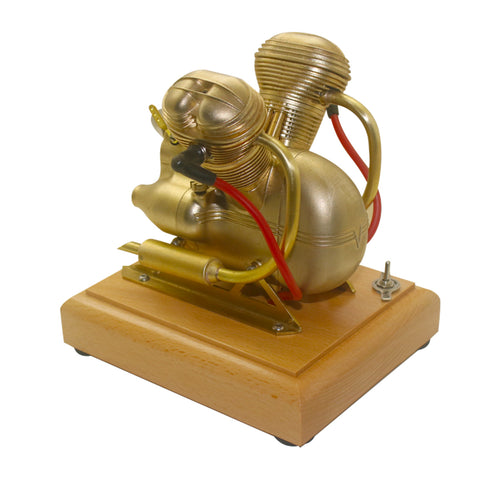

V35 3.2cc Mini OHV Horizontal V-Twin Four-stroke Gasoline Engine Internal Combustion Engine Model for Motorcycle (Golden)
Features:
.Simulated Motorcycle Engine: Highlight the beauty of this engine with the 60-degree cylinder angle, hidden intake, and tiny metal chain transmission of the valve mechanism. Featuring the advantage that lies in its ingenious structural design, every component of the model restores the mechanical principle to make this all-metal engine model start and operate.
.Sophisticated Manufacture: Treated with precision casting on the entire engine and carefully-crafted parts, the contour of the cylinder and other parts with casting process are very round. The engine model boasts the most significant feature of motorcycles in that era. providing you with the unique charm brought by the mechanical operation of the engine.
.Steps to start the engine: (1) Check the engine wiring from the wooden base, connect the oil pipes of the fuel tank, and install 3 AA batteries (4.5V); (2) Fill the fuel tank with 95# gasoline. The flywheel rotates clockwise multiple times on the right side of the engine (the surface of the power switch). This will make the mixed fuel completely enter the cylinder and ensure that there is no air in the fuel pipe; (3) Turn on the power switch and then quickly turn the flywheel clockwise. Start the engine on the right side (surface of the power switch).
.Notes: (1) If the machine cannot start normally with normal ignition and cylinder compression, it is likely to need to adjust the carburetor oil needle; (2) After tightening the main oil needle on the carburetor, loosen 1 /4 circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio; (3) When the machine stops running, turn off the power switch.
.Superb Model & Gift: This stunning mechanical craft allows you to feel the allure of the engine when working, suitable for personal use and an impressive gift to friends, families and model lovers on major festivals.
Specifications:
.Material: Brass/Stainless Steel/Bamboo
.Item No: V35
.Displacement: 3.2CC
.Cylinder Diameter: 13mm
.Stroke: 12mm
.Supply Voltage of Ignition: 4.5V (3*AA Batteries, Not Included)
.Starting Mode: Manual/External Force (Electronic Drill) Starting
.Engine Dimensions: 140*120*110mm
.Wooden Base Dimensions: 150*120*30mm
.Product Dimensions: 15 x 12 x 14m
.Product Weight: 1600g
.Package Dimensions: 150*120*30mm
.Package Weight: 1900g
.Packing: Box
.Ages: 14+
